Submission Guideline

This article will explain the submission process from start to finish.
We'll begin from the process of creating a new Unity2018 Project, importing necessary packages, and making the submission.

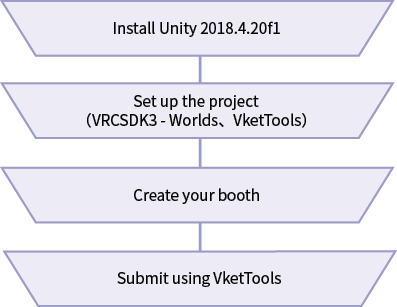

Below is the rundown of the process.

  1. Install Unity 2018.4.20f1
  2. Set up the project (VRCSDK3 - Worlds, VketTools)
  3. Create your booth
  4. Submit using VketTools that are downloadable from the My Page

summary

Upon creating your booth you may utilize the official distribution package. If you wish to include sounds, videos, or gimmicks into your space, please consider using the official prefabs first.

If you have any questions, please refer to the FAQ for exhibitors. If your trouble is still not resolved, please feel free to post questions at Virtual Market Discord or send inquiry from the contact form. Also, we provide Submission Tips as a part of technical support.

The Submission period starts from (JST) July 1 12:00 noon, (UTC) July 1 3:00 am, (EST) June 30 11:00 pm and ends at (JST) July 31 11:59 pm, (UTC) July 31 2:59 pm, (EST) July 31 10:59 am. During this period you may actually see how your submitted space will look in the world.

Now, in this article, assuming that you have completed the product you are going to exhibit, we are going to explain from the very beginning of setting up the Unity.

1. Installing Unity2018.4.20f1

Firstly, please download and install the Unity Hub. Then you can install version 2018.4.20f1 of Unity by opening the URL below.

unityhub://2018.4.20f1/008688490035

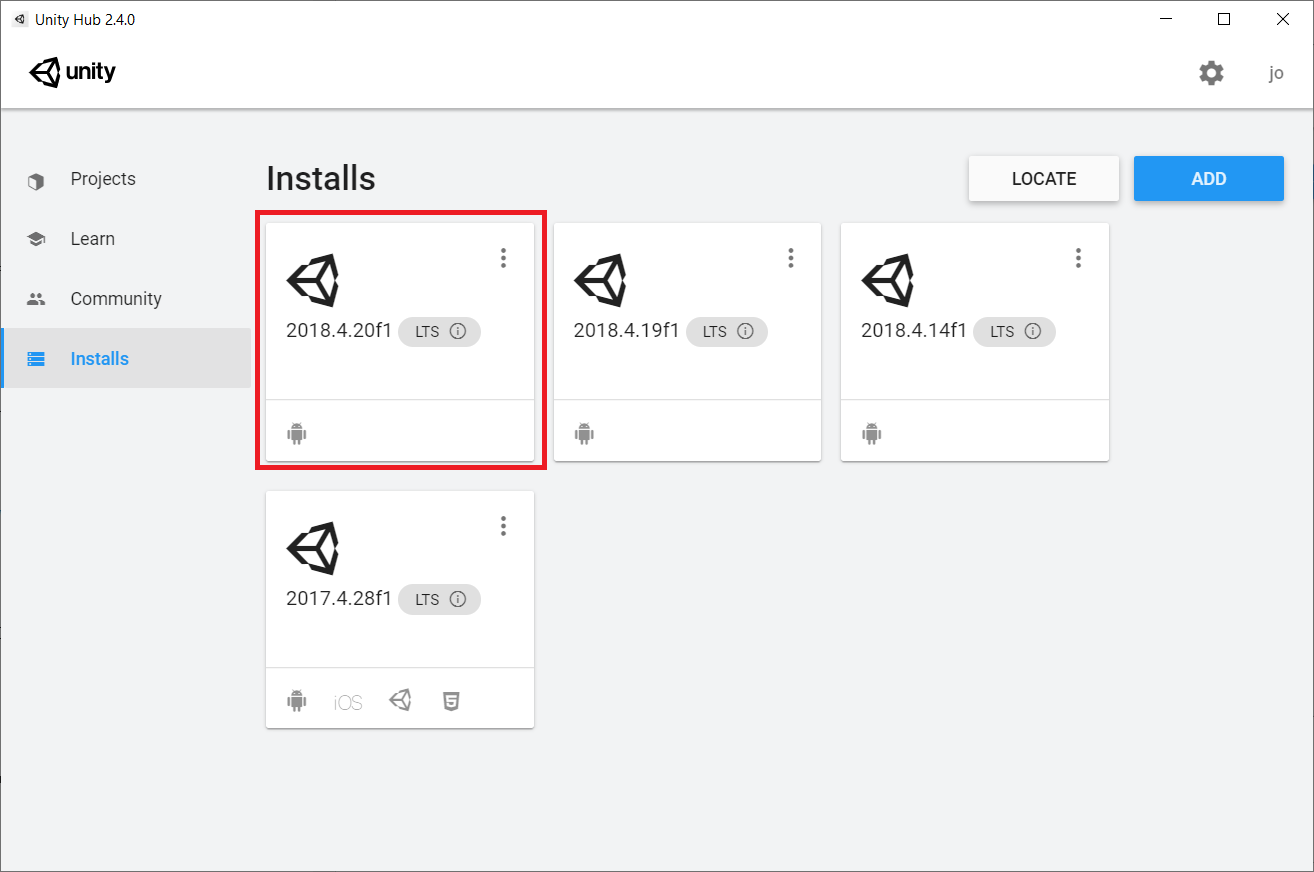

Once finished, you should be able to see 2018.4.20f1 added to the "Installs" tab.

unityinstall

2. Set up the project (VRCSDK3 - Worlds、VketTools)

2-1. Create a project for Submission

Let's create the project file.

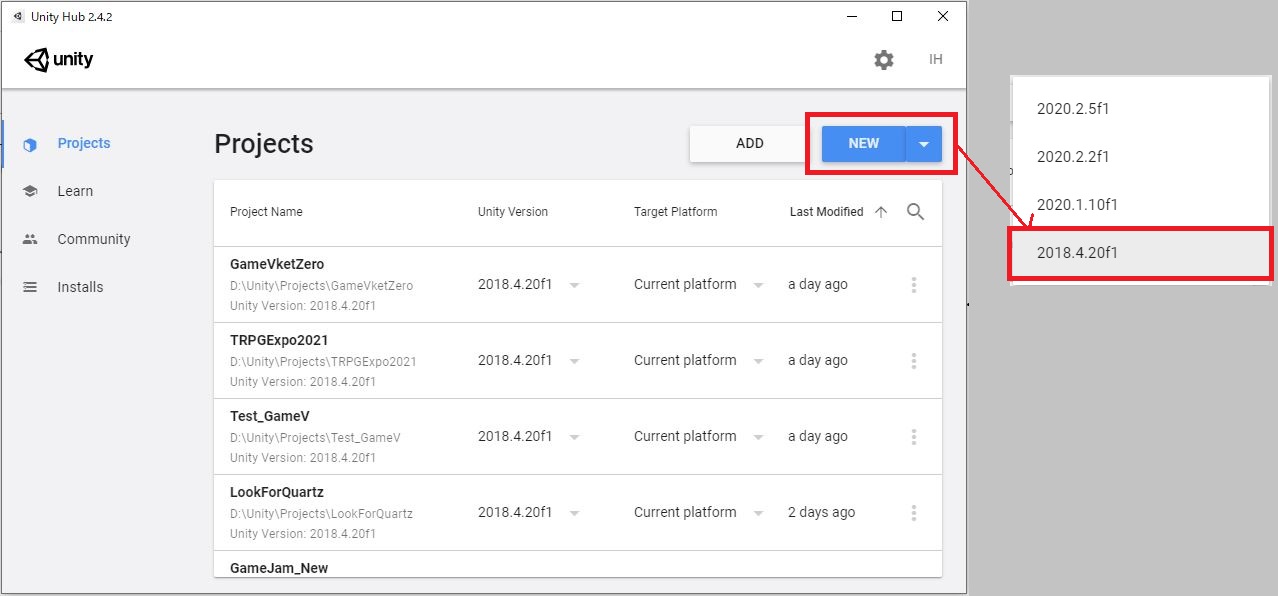

On UnityHub, choose the blue "New" button from the "Projects" window and select version 2018.4.20f1.

Only use alphabets and numbers for project name and project file location. Please avoid double bytes characters.

unityinstall

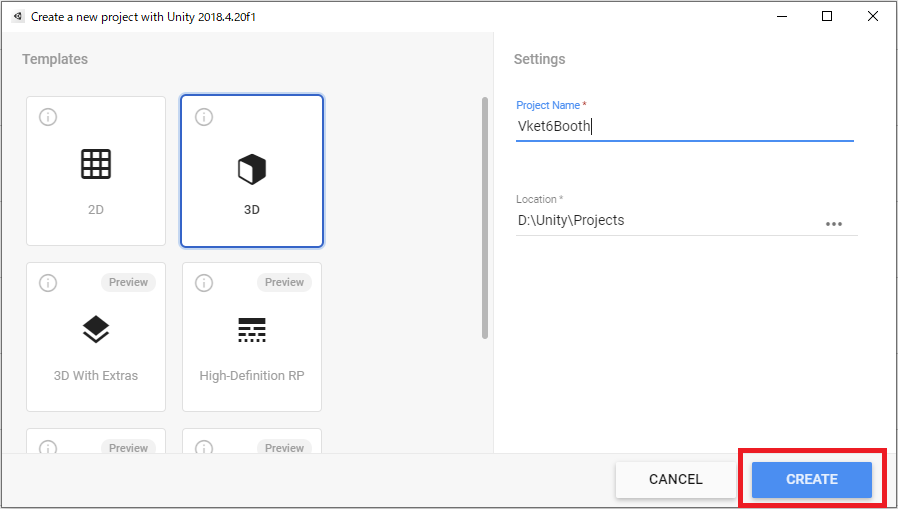

Choose "3D" for the template, enter the Project name and the destination folder, and click Create.

unityinstall

2-2. Import the VRCSDK

Thereafter, you need to import the VRChat SDK3 into the project.

Open VRChat website from VRChat and log in to your account from top right button.

There you will see the home page as below. Select "Download" from the left column. In "VRChat SDK3" click "DownloadSDK3- Worlds" to download the latest SDK3.

vrchat

As of writing the latest version is VRCSDK3-WORLD-2021.06.03.14.57_Public

Then, in the Unity select "Import Package", "Custom Package..." and select the downloaded unitypackage to import.

submissionguideline

2-3. Import the VketTools

Finally, let's introduce the "VketTools" that will be used for submission. This package also provides official distribution Prefabs and official shader packs.

VketTools is available at the Mypage. Just like you've done for the VRCSDK, import it on the Unity.

2-4. Project setting for Vket6/VketMall

When you open a new Unity Project you will see the SampleScene being open.

From the Project view, open the VRChat Examples/Prefabs2 folder and drag and drop the VRCWorld Prefab to the Hierarchy.

world

Open VRChat SDK/Show Control Panel from the top menu and login with your VRChat account.

controlpanel

Switch to the Builder tab and click on Setup Layers for VRChat
Select Do it! on the confirmation window.

setuplayers

Next, click on Set Collision Matrix
Select Do it! again on the confirmation window.

setupcollisionlayermatrix

This completes the Project Setting. The Scene file "SampleScene" won't be used anymore, so you don't need to save it.

3. Constructing your booth

3-1. Login to VketTools

Now that the project is ready, let's download the necessary assets and create the scene for booth production.

Open the VketTools/Control Panel from the Unity menu. The login window will open up. Click on the Login button.

vkettoolslogin1

At first login, you will see a webpage with your authorization code. Copy the code, paste it in the form, and click “login”.

authcode

vkettoolslogin2

If the login is successful, you will see the Control Panel like below.

vkettoolslogin3

3-2. Import official assets

After successfully logging in, import the official assets including Prefabs from the Packages at the bottom right of Control Panel.

vkettoolspackage

Once downloaded, please import them in the Unity just as you've done for the VRCSDK.

3-3. Creating the Submission Scene

From VketTools' Control Panel, click on Create Submission Scene

vkettoolssubmissionscene1

You will see the VitDeck window. Click on Load.

vkettoolssubmissionscene2

A folder and a scene file for your submission will be generated directly under the Assets folder.

vkettoolssubmissionscene3

Double-click and open the generated scene file (on the example picture, it's the file labeled 3) A scene for the submission will open up.

vkettoolssubmissionscene4

3-4. Booth creation

As per the Submission Rule's "Scene Structure and Hierarchy Settings", the submission Scene's hierarchy will be set up as follows.

  • ExhibitorBoothManager(The Udon needed to test Trigger on the Submission Scene, and the script for automatic setup.)
  • (Exhibitor's ID)
    • Static
    • Dynamic
  • Reference Object ←This contains the lighting settings similar to the lighting condition in the venue.

The Objects you'll be exhibiting should be placed inside either Static or Dynamic as the child Object. All movable and controllable Objects need to be inside Dynamic, while immovable ones should be in the Static

【Note】

In the Vket6 submission scene the lighting environment is not set similar to the venue world.
To check how your space will look in the venue including the lighting, please visit the Preview World.

3-5. Official distribution packages

From the VketTools you can install "VketPrefabs" that are useful for booth creation. For example, “VketAvatarPedestal”, one of the “VketPrefabs”, are packaged in the following way.

vketprefabs

We will go over each Prefab in it.

Vket Avatar Pedestal

This Avatar Pedestal will show confirmation dialog.

By interacting with the dialog again, users can change into the avatar.

We provide below 3 kinds of it.

  • Default:A pedestal where the avatar image will look shimmering. The same appearance as the one packaged in the VRCSDK.
  • 2D:You can set any images you like. Unlike the Default, it won’t shimmer.
  • 3D:You can use a 3D model as its appearance.

Details→ VketAvatarPedestal

Vket Video Player

This VideoPlayer will play a video upon Interact or Player’s entry to the booth (OnEnterTrigger).

The Collider of the Trigger will be set by the Vket Organizers. You may not modify the Collider.

Limitation: only 1 per 1 booth can be used.

Details→ VketVideoPlayer

Vket Pickup

This Pickup lets one hold the object in hand. The object will return to the original location if nobody touches the object for 30 seconds. The player can bring the object outside of the booth by moving while holding the object.

Details→ VketPickup

VketFollowPickup

In addition to VketPickup, this Pickup allows you to equip the object on the head or other parts.

i.e. Equip a hat on the head. The hat will follow the head even after letting the hands go.

Details→ VketFollowPickup

Vket Sound Fade

This sound player will play a sound upon Interact or Player’s entry to the booth (OnEnterTrigger).

Simultaneously, the prefab will fade out the world BGM.

Details→ VketSoundFade

Vket Language Switch

This Switcher will enable/disable specified objects in the booth by Interact.

This will be used to switch English notations and Japanese notations.

Details→ VketLanguageSwitcher

Vket Interact Trigger/Vket OnBooth Trigger

Like the Trigger in the VRCSDK2, it will run an action upon Interact.
You may choose to run several of the below actions.

You may choose local or Sync, though the status may not be synced with players joining the world later.

Details→ Vket Interact Trigger / Vket OnBooth Trigger

Vket Web Page Opener

The Prefab will show confirmation dialog upon Interact and, when interacted again, open a webpage in the Player’s browser.
Since it is a special functionality, the Prefab will only work with Vket worlds during the event periods.

Details→ VketWebPageOpener

UI Template

This is the set of templates to show images with uGUI or create functional buttons inside VRChat easily. Please make good use of them if necessary.

3-6. Check your booth using VketTools

You can check whether your booth is in line with the Submission Rules by using the Check buttons on the Control Panel.
The same Check process will still be required when submitting. Please use this function to perform the checks on the work-in-progress booth.

vkettoolscheck

submission

4. Submit using VketTools

4-1. Submit your booth with VketTools

Clicking Submission on the Control Panel will begin the submission process for the current Scene content.

vkettollssubmission

Once the submission starts, as shown below various checks will be performed in eight steps. VRChat will launch and you'll be sent to your Submission Scene. Check that all the space functions are working properly.

After confirming everything, click on the Confirmed button to continue the process.

submission

After the Rule Check and Build Size Check, the Screenshot Capture window will open. Please click Capture button to take a screenshot.

submission

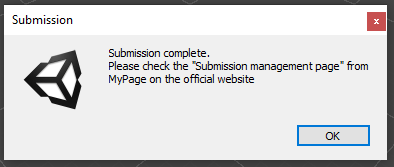

If you see Submission complete after clicking OK, your submission is completed successfully.

submission

4-2. About VketTools' Updates

In case new versions of VketTools are released in the future for patches or other reasons, you'll be prompted to update with a dialog. Note that you can only submit with the latest version.

vkettoolsupdate
